CE approved
Packing: colour box

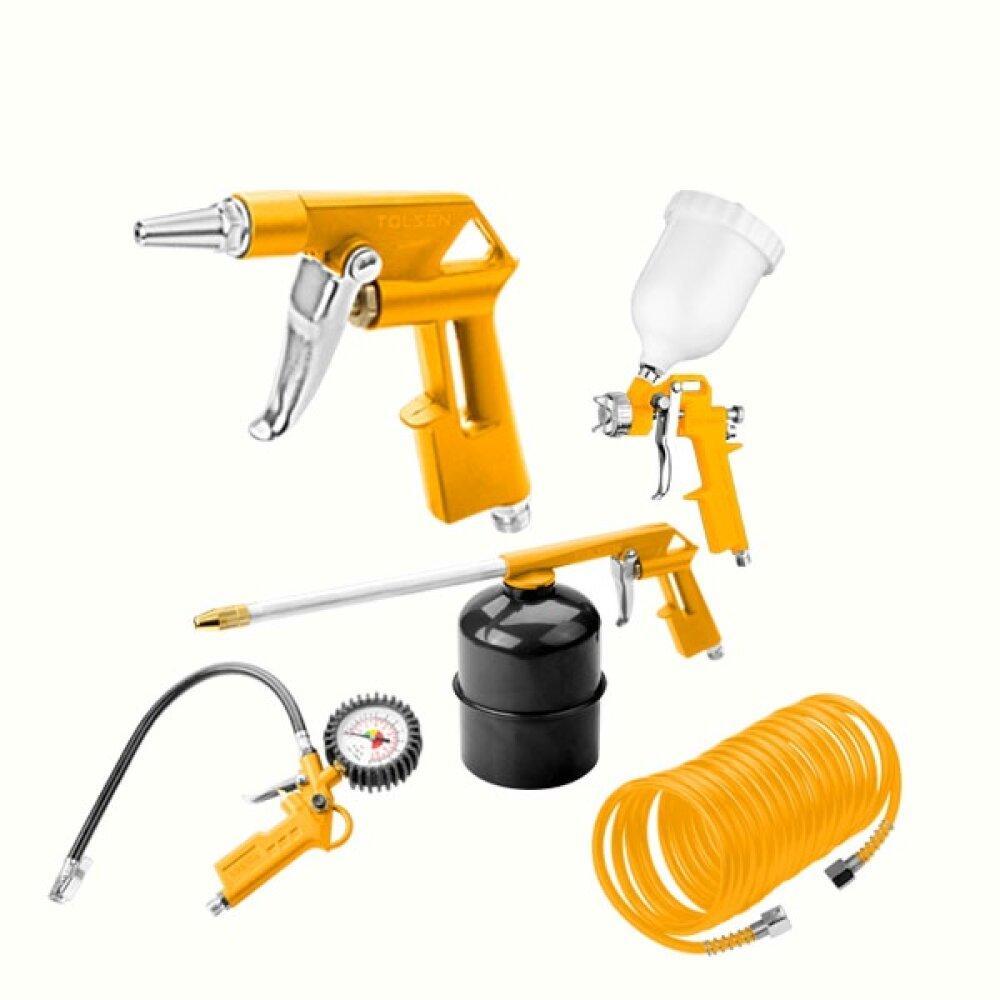

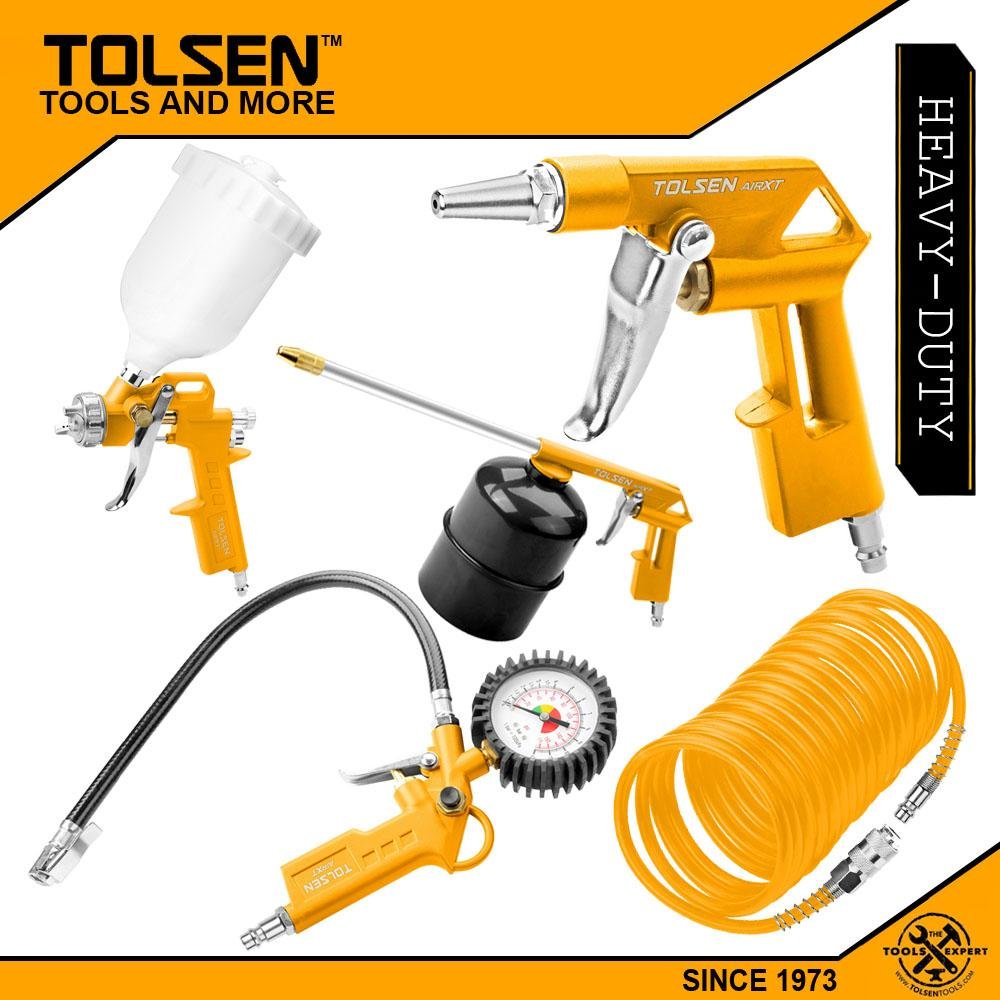

1 x Air spray gun: 600ml, Gravity feed
1Â x Air blow gun: nozzle length 20mm
1 x Air washing gun: 1000ml, suction feed
1 x Air tire inflating gun: 0-12 bar and 0-170 psi; 1/4″
threaded connectors

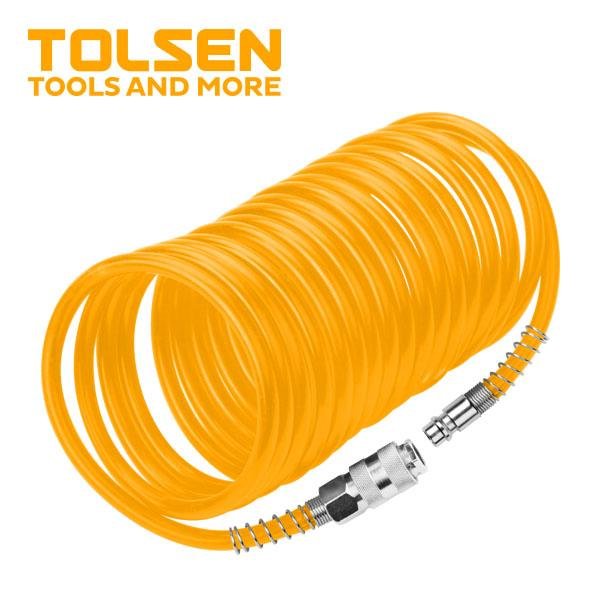

1 x Spiral air hose
Item No for the Set | 73198 |
Colour | Yellow |

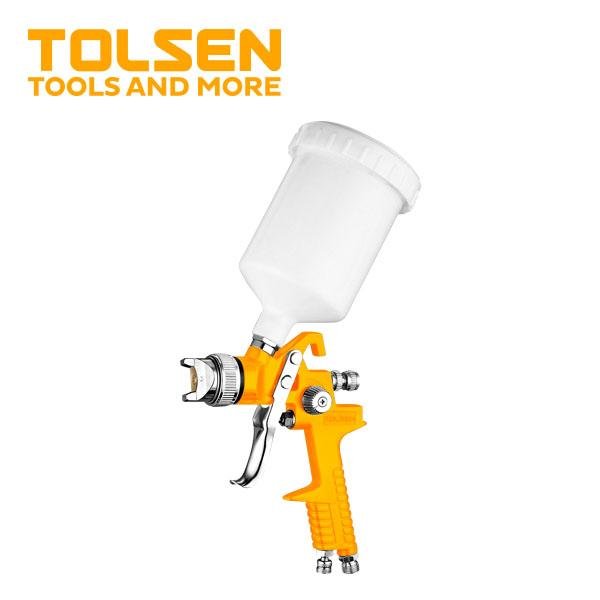

Item No for Air Spray Gun | 73175 |
Type of feed | Gravity |
Standard nozzle | 1.4mm |
Air consumption | 6cfm |
Operating air pressure | 2.0-3.5 bar |
Pattern width | 160-260mm |
Paint capacity | 600ml |
Material | Aluminum Alloy |

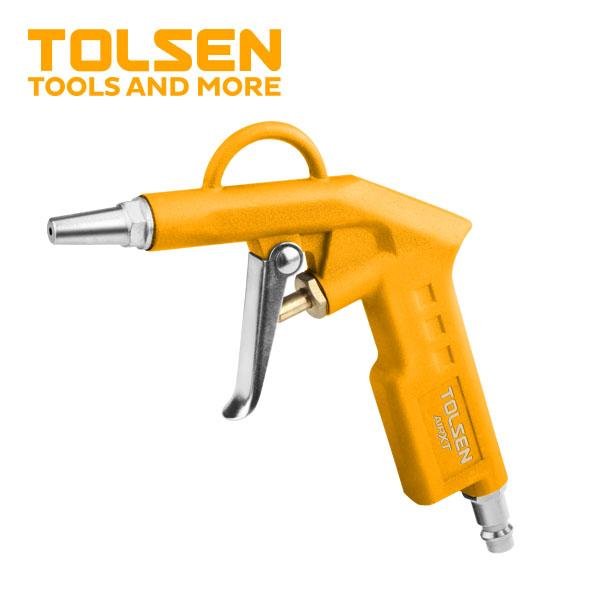

Item No for Air Blow Gun | 73195 |
Type | AIR PUMP |
Application |
Suitable for cleaning liquid, swarf or dust during manufacture or assembly |
Nozzle length | 20mm |

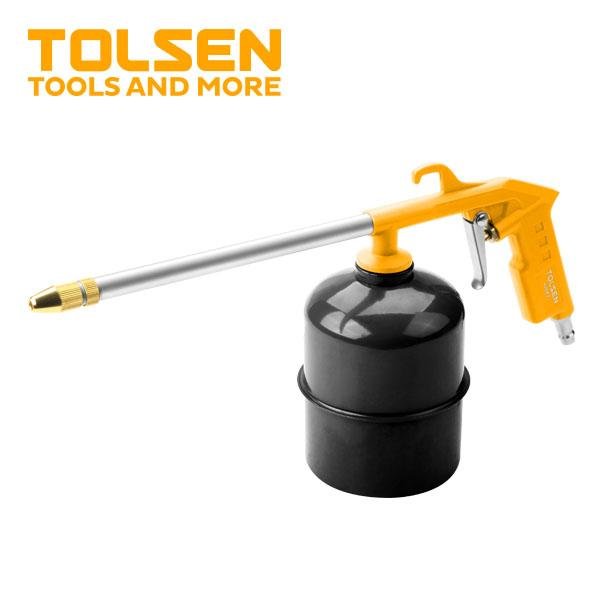

Item No for Air Washing Gun | 73191 |
Type | Mini Spray Gun |
Application | Washing Gun |
Washing capacity | 1000ml |
Nozzle Size | 215mm |
215mmMaterial | Aluminium |
Operation pressure | 4bar |
Feed type | Pressure |

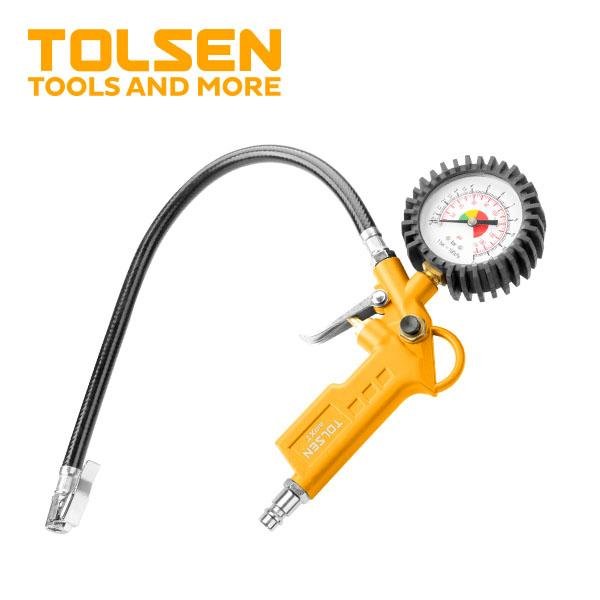

Item No for Air Tire Inflating Gun | 73193 |
Dial reads | 0-12 bar and 0-170psi |
Length | 40cm |
Features |
 G1/4 threaded connectors Suitable for use with motor Pistol-Grip with dial Clip-on connector |
Item No for Hydraulic Hose High-Pressure Rubber Hose | 73151 |
Material | Silicone |
Inner diameter |
6mm
|
Outer diameter | 8mm |
Maximum working pressure | 16Bar (230psi) |
Hose Connector | 1/4 inch (6.35mm) |
Warranty | 12months |
